A tool as tough as you
Go where you’re needed. Power through your toughest shift. Exo Iris is the ultimate diagnostic tool for any care setting.

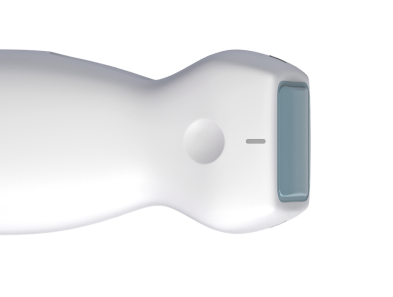

![Exo Iris device on its side](https://images.ctfassets.net/f1onadsih6xk/64lvBynrtCrpEMpIaJPJOh/97f47493a1e14c0341b8deff58628f8e/Exo_00002-2_1.png?fm=webp&q=100&f=center)
Device
Meet the device that supports the demands of the job.
Weight
300 grams
Dimensions
143 X 53 X 36 mm
Battery Life
Up to 2 hours
Waterproof and dustproof
IP67*
ERGONOMICS
3-finger grips
DURABILITY
1-meter drop tested

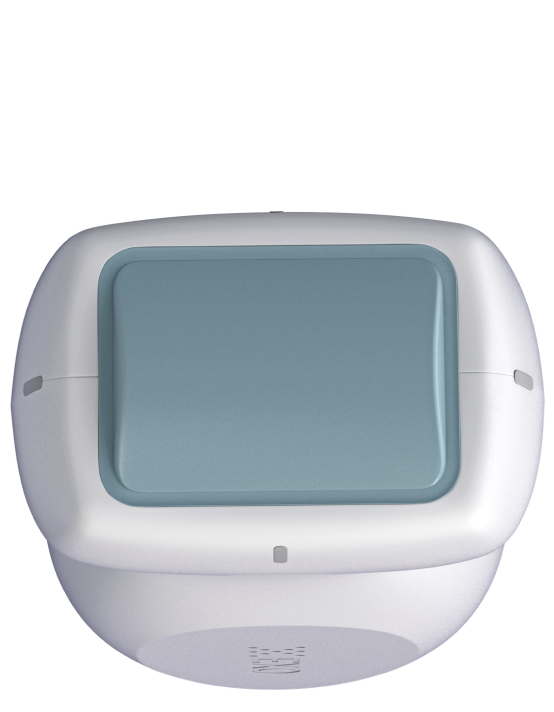

![Exo Iris device facing the forwards](https://images.ctfassets.net/f1onadsih6xk/azqgsZPpmoykNUmXYH5ab/63126f7291995eab6b37e8c136092328/IrisProbe_extPadding01.png?fm=webp&q=100&f=center)
Imaging
Exo Iris is built with Exo Silicon, our patented ultrasound technology that blends the imaging excellence of piezoelectric crystals with silicon’s affordability.
3-in-1 Imaging
Linear, Curved, Phased Array
Aperture Size
25mm x 15mm
Frequency range
1.5-12 mHz
2D Matrix Array
4096 individually controlled pMUTs
Modes
M-Mode
B-Mode
Color Doppler
Power Doppler
Pulsed-Wave Doppler
Applications
22 exam types and procedures
Signal processing
Harmonic Imaging
Tools
SpotOn™ Needle tracking
Dynamic TGC
Ultra-wide field of view 60°-150°
Depths up to 30cm

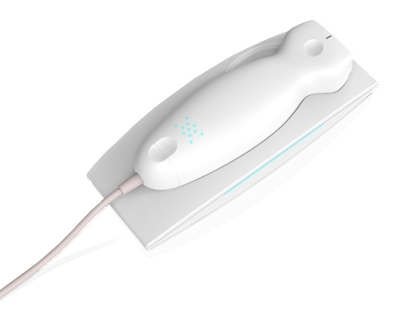

![Exo Iris docked](https://images.ctfassets.net/f1onadsih6xk/34V9YFAcmTS18229u0lZoS/5318db09dfdb0473bfd4fdaab04f2922/IrisDocked_1.png?fm=webp&q=100&f=center)
AI and Workflow
Exo Iris blends imaging with powerful, FDA-cleared AI and workflow software, so you have instant answers at your fingertips.
Core AI
Bladder, Cardiac, Lung
Workflow
22 worksheets for documentation compliance
Anonymized image and exam sharing
DICOM
Modality worklist, store, send
Integration
Modality Worklist
PACS/VNA
EHR**
Storage
1 TB on Exo cloud

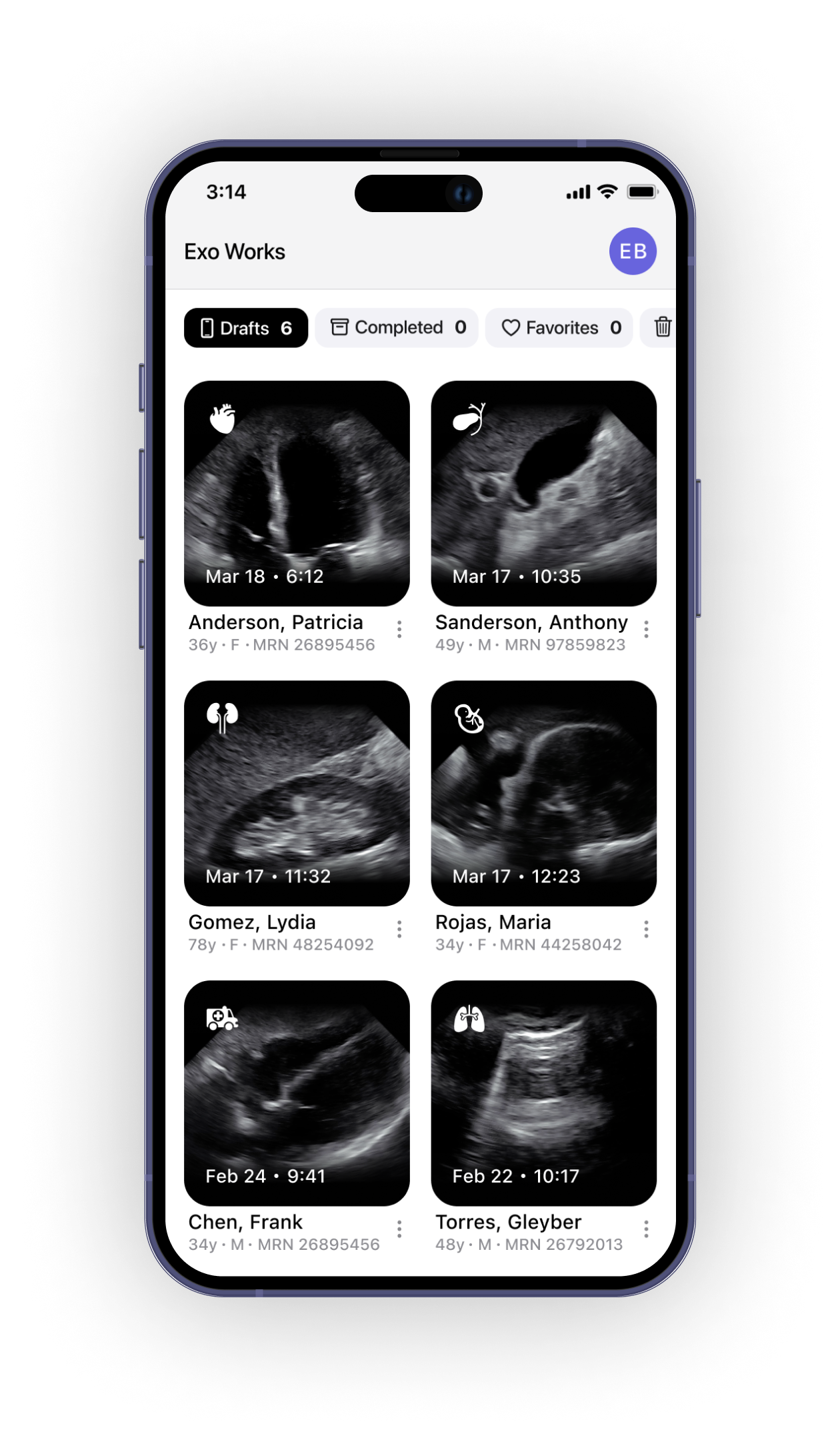

![Phone running the Exo app displaying an ultrasound](https://images.ctfassets.net/f1onadsih6xk/2D3XgReVN5jQhN6WJXejwV/42aff1c1a8cca8f2246b7f02df8b1631/17.png?fm=webp&q=100&f=center)
Compatibility
Stay up to date with the latest Exo Iris features. Harness the power of iOS and receive software updates as they become available.
DEVICES
iPhone 12, iPhone 12 Pro,
iPhone 12 Pro Max
iPhone 13, iPhone 13 Pro,
iPhone 13 Pro Max
iPhone 14, iPhone 14 Plus,
iPhone 14 Pro,
iPhone 14 Pro Max
iOS
16, 17
Exams, Procedures and Worksheets:
Abdomen
Aorta
Bladder
Biliary
Breast
Cardiac
Deep Vein
eFAST/FAST
GYN
Lung
MSK
OB1
OB2/3
Ocular
Renal
Testicular
Arterial Access
Central Venous Line
Nerve Block
Paracentesis
Peripheral IV
Thoracentesis
Security
HITRUST certification
HIPAA-compliant
SOC 2 Type II
ISO 27001
ISO 27701
GDPR
Connection
Wired Charging Time: 2 hours
Wireless Charging Time: 5 hours
Duo Cable: Lightning and USB-C
Environmental
Operating ambient temperatures: 0° to 28°C
Non-operating temperature: -20° to 45°C
Relative humidity: 0% to 95%
Operating altitude: Up to 3,000 meters
Cleaners and disinfectants:
Low Level Disinfection (LLD) and High-Level Disinfection (HLD) include:
Super Sani-Cloth Germicidal Disposable Wipe
Sani-Cloth Prime
Sani-24
Opti-Cide3
CaviWipes
Metricide OPA Plus †
Cidex OPA†
*Up to connector
**Available with Exo Works® Enterprise
† HLD
*Requires Exo Works Enterprise
